CUTINO BROS ENGINEERING WELCOMES YOU

Cutino Bros Engineering (Pty) Ltd was established in 1984 . The company supplies precision machining workshop services and steel fabrications within the paper & packaging, offshore oil, marine and general construction and manufacturing related industries.

SERVICES WE OFFER

Precision Engineering  |  Mechanical Engineering   |   General Engineering  |  CNC Turning & CNC Milling  |  Welding  |   Line Boring  |   Engineering Services  |  Manufacturing of Mechanical & Pump Components, Hydraulic Cylinders, Exhaust Manifolds, etc  |   Surface & Cylinder Grinding  |  Vertical & Horizontal Boring

READ MORE

ABOUT US

Cutino Bros Engineering (Pty) Ltd was established in 1984 by its current managing directors and moved to its present site in 1990. The company supplies precision machining workshop services and steel fabrications within the paper & packaging, offshore oil, marine and general construction and manufacturing related industries. The machining services are specially performed to fine tolerances and welding is performed to certified and approved specifications to suit the industrial requirements for these applications. All dimensions are inspected and NDT's (Nondestructive Testing) are performed to prove the quality and conformity of the product. Cutino Bros Engineering (pty) ltd numbers many satisfied customers in the mechanical, marine, industrial, mining and civil engineering disciplines within South Africa and abroad. We have a fully equipped work shop enabling us to carry out virtually any manufacture or repair operation in-house complete with an up-to-date machine shop comprising of 1400mm diameter swing x 8000mm between centers lathe, C.N.C turning, C.N.C milling 4000 x 3000 x 1500mm and the latest in cad-cam machining. We also offer fabrication facilities with MIG (Metal Inert Gas), TIG (Tungsten Inert Gas), 25 ton lifting capacity overhead gantry crane with 8.5m below the hook. This enables us to either fabricate from new or carry out high standard repairs or refurbishment. We are able to work with stainless steel, aluminium and all ferrous and non-ferrous metals. We are also able to offer on-site services carried out by highly trained personnel such as in-situ machining of shafts and bores, general fitting, welding and installations.

SERVICES

The manufacturing process used by the company include:
  • Turning Capacity 1400mm diameter x 8000mm between centers
  • Vertical boring capacity 2600 x 1250mm
  • CNC milling capacity 4000 x 3000 x 1500mm
  • CNC Turning capacity 670 x 1520mm
  • Horizontal boring
  • Milling
  • Slotting
  • Surface grinding
  • Cylinder grinding
  • Manufacturing of pressure testing components
  • Manufacturing of API flanges
  • Machining of riser main tube flanges
  • Machining of BX & R/RX ring grooves
  • Machining of telescopic joint components, diverters, spiders & gimbals
  • Manufacturing of mechanical components
  • Machining of mechanical components
  • Manufacturing of hydraulic cylinder
  • Manufacturing of pump components
  • Manufacturing of exhaust manifolds

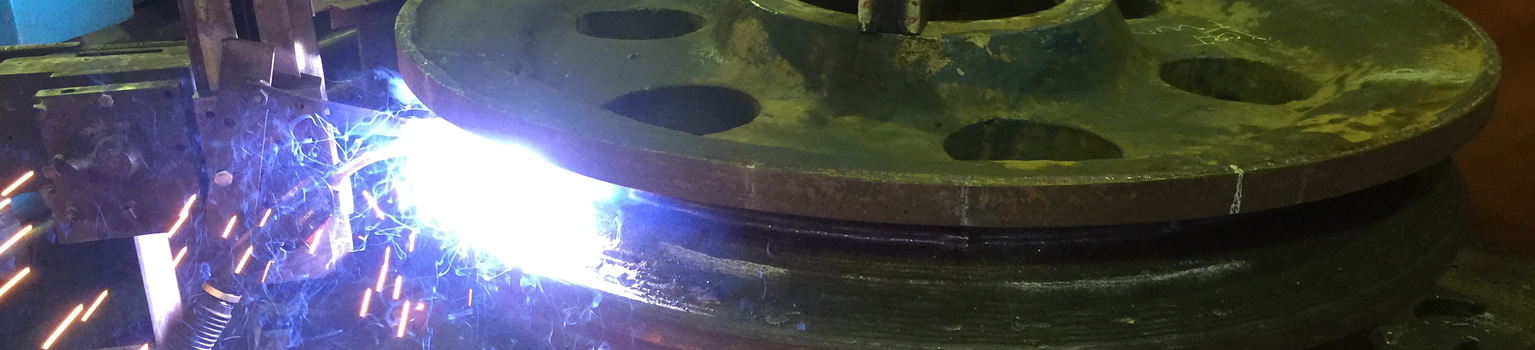

  • Welding repairs with qualified & approved procedures
  • Overhaul of large centrifugal & vacuum pumps, valves

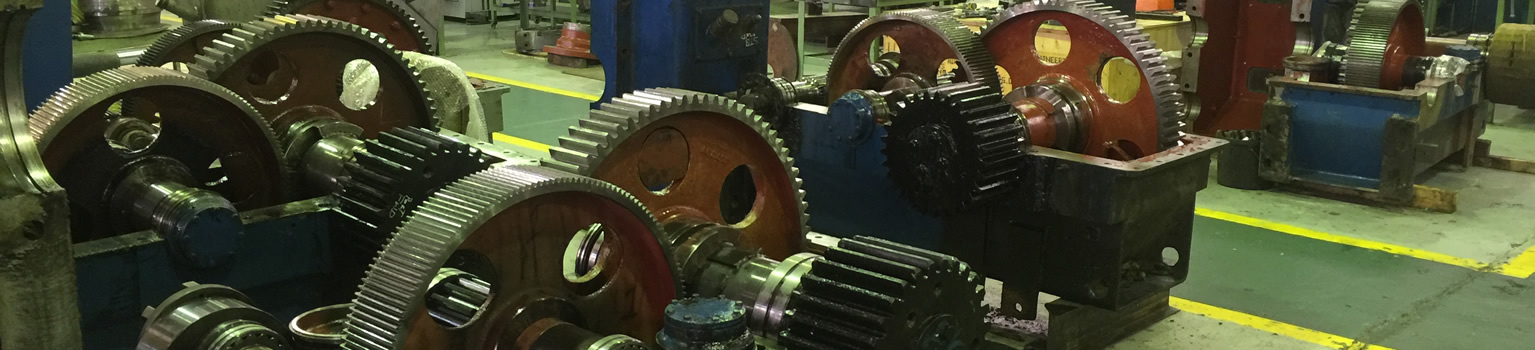

  • Overhaul or manufacture complete gearboxes
  • Micro alignment for bores, beams structures (accuracy of 0.02mm over 10000mm)
  • Overhaul of mooring winches
  • Removal of broken studs or bolts in-situe
  • In-Situ Machining of shafts, thread cutting & keyway cutting
  • In-Situ Machining of liner landing faces
Have a breakdown? And downtime costing you money? We are the solution!!
With 24hr Breakdown assistance, and on-site repair we will ensure that you are up and running in no time

When is In-situ machining required?
  • When the component or machine is too large to fix off site
  • It is too costly or time consuming to remove component for machining
  • Offshore machining on oil rigs and ships
  • Line Boring of bores
  • Machining of shafts
  • Machining of keyways
  • Machining of liner landing faces of marine diesel engines
  • Alignment of shafts and/ or bearings

With one of the largest milling machines & lathes in the Western Cape our fully equipped machine shop will cater for all your machining & fabrication needs

Machining of stainless steel bearing
sleeve 1200 od x 1180 id x 500L
Tolerance of ±0.08mm

Fitting and machining of new wear
rings on Ø2200 turbine runner

Turning of Quarry crusher components
Ø1400 x 1500L

No job is too Big or too Small
At Cutino Brothers our highly trained machine operators will refurbish and manufacture just about any component you can think of, this is where accuracy and precision counts

We manufacture:
  • Ears
  • Shafts
  • Pulleys
  • Nozzles
  • shims
Cutino Bros Engineering Pty Ltd specialize in:
  • Manufacturing and repairs of precision machine components
  • Machine building and reconditioning
  • Overhauling & manufacturing of industrial gearboxes & pumps
  • In situ machining, facing and boring
  • Vertical boring
  • Cylindrical grinding
  • Welding
  • Turning
  • Slotting
  • Planning
  • Fitting
  • Boiler Making
  • CAD Design
  • Gear Cutting

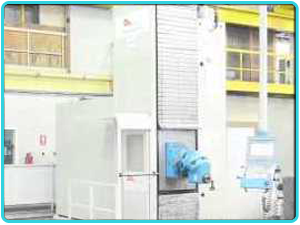

CNC MILLING

CME Design
Toolparths:
  • longitudinal – 4000mm
  • cross – 1500mm
  • vertical – 3000mm
Toolfeed positioning accuracy:
  • position – 10 micron / 0.010mm
  • repeat – 15 micron / 0.015 mm
  • 15 micron accuracy

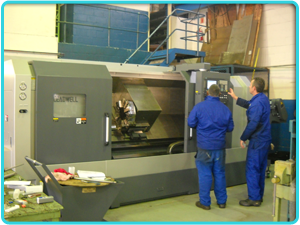

CNC LATHE

Leadwell ltc-25I xxl
  • Machine centre
  • Horizontal heavy duty
Capacity
  • Swing 670mm
  • Turning dia 450mm
Travel
  • X-axis 225+25mm
  • Z-axis 1590mm
External Micrometers

  • 0 - 25mm
  • 25 - 50mm
  • 50 - 75mm
  • 75 - 100mm
  • 0 - 150mm
  • 50 - 150mm
  • 150 - 300mm
  • 300 - 400mm
  • 400 - 500mm
  • 600 - 700mm
  • 700 - 800mm
  • 800 - 900mm
  • 900 - 1000mm
  • 1000 - 1100mm
  • 1100 - 1200mm
Internal Micrometers

  • 50 - 300mm
  • 200 - 800mm
Internal Micrometers 3 Point

  • 11 - 20mm
  • 20 - 40mm
Internal Clock Micrometer

  • 50 - 300mm
  • 50 - 400mm
Verniers Caliper

  • 600mm
  • 1000mm
  • 2000mm
Alignment

  • Micro Alignment Telescope & Accessories
  • Precision Levels
Other

  • Clock Bore Micrometer
  • Hardness Tester
  • Imperial Micrometer External 2.50" - 6"
Gage Maker

  • BX 1000
  • BXG 1000
  • PD 8001
  • IT 6000
Lathes

  • Lathe Centre Mitco 250mm Dia x 1000mm B/C
  • Lathe Centre Japac 380mm Dia x 2000mm B/C
  • Lathe Centre Badji 400mm Dia x 2000mm B/C
  • Lathe Centre Toss 600mm Dia x 4000mm B/C
  • Lathe Centre Urses 400mm Dia x 2000mm B/C

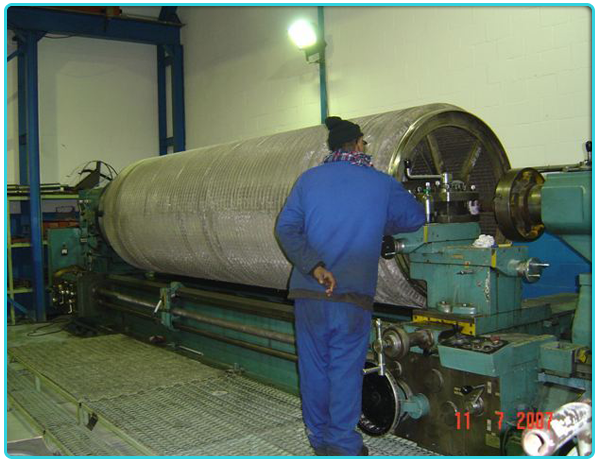

  • Lathe Centre 1400mm Dia x 8000mm B/C
Vertical Lathes

  • Vertical Lathe Ucimu Pensoti 2600mm Dia Swing x 1250mm
CNC Lathe

  • Leadwell LTC - 251 XXL 670mm Dia Swing x 1520mm B/C
Milling Machines

  • Milling Testa Varese
  • Milling Kent
  • Milling Machine
  • Milling Peb Phoenix 1200mm x 600mm
CNC Milling Machines

  • CME 4000 CNC Milling Machine 4000mm x 3000mm x 1500mm
  • Leadwell V-40 Vertical Machine Centre 1020mm x 500mm x 500mm
Drilling Machines

  • Drill Mag Base Atlas Copco
  • Drill Press Jens Heisohn
  • Drill Radial Arm Brookhirst
  • Pedestal Drill Elliot
  • Pedestal Drill Kira
Portable Machinery For In-Situ Machining

  • Boring and Facing Machine 0mm - 150mm Dia
  • Boring and Facing Machine 150mm - 300mm Dia
  • Boring and Facing Machine 300mm - 600mm Dia
  • Boring and Facing Machine 600mm - 1000mm Dia
  • Boring and Facing Machine 1000mm - 2000mm Dia
  • Keyway Milling
  • Milling up 5000mm L x 1000mm W
  • Shaft Turning up to 1000mm Dia
  • Internal Thread Cutting
  • External Thread Cutting
Boring Machines

  • Boring Toss N 100mm Dia x 1600mm x 1200mm x 1100mm
Gear Cutting Machines

  • Gear Cutter WMW Module 5mm x 450mm Dia
Grinders

  • Grinder Cylindrical Cincinnati 1800mm x 350mm Dia
  • Grinder Surface Elbschliff 1500mm L x 500mm W
  • Sander Grinder Martlet
  • Sander Radial Arm
Welding Machines

  • Mig Welder Large Miller
  • Mig Welder Small Cemont
  • Tig Weld Lincoln
  • Weld Linear 250
  • Weld Messer Griesheim
  • Portable Welder Blue Eurasia
  • Portable Welder Red Telwin
Qualified Welding Procedures

  • ENB Shaft Welding and Overlay
  • EN19 Shaft Welding and Overlay
  • EN24 Shaft Welding and Overlay
  • EN9 Welding and Overlay
  • 300WA Welding and Overlay
  • ST52 Welding and Overlay
  • 50B Welding and Overlay
Other Machines and Equipment

  • Bandsaw T-Jaw 450
  • Compressor Compare
  • Dividing Head 1200mm Dia
  • Generator 180 Kya
  • Mat Saw Way Train - Cut Off Saw
  • Press 180 Ton
  • Slotting Cressex
  • 180 Ton Hollow Jack C/W Pump
  • 80 Ton Hollow Jack
  • 60 Ton Hollow Jack
  • 40 Ton Hollow Jack
  • 5 Ton Chain Blocks
  • 3 Ton Chain Blocks
  • 2 Ton Chain Blocks
  • 1 Ton Chain Blocks
Overhead Gantry Cranes

  • 5 Ton Demag
  • 10 Ton Shengqi
  • 25 Ton Shengqi
